Non-Destructive Investigation Using Ground Penetrating Radar to Locate Possible Voids and Services, NSW (Q2 2013).

  • Site View.
  • Site View.
  • Site View.
  • The Sir3000 and antenna were mounted onto a specially designed cart.

GBG Australia undertook a Non-Destructive investigation to locate possivle voids and services, NSW. A GSSI Sir3000 with a 400MHz antenna was used . The purpose for the survey was to supply information on possible voiding and the location and depth of services in the area.

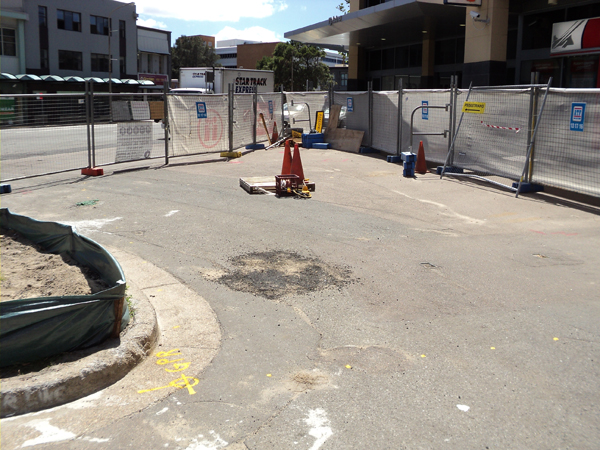

Figure 1: Site View.

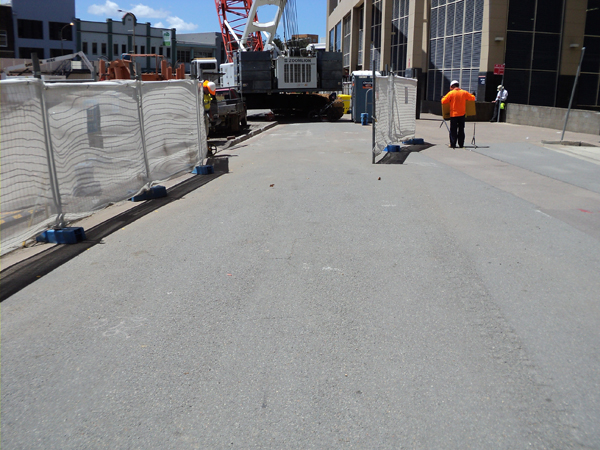

Figure 2: Site View.

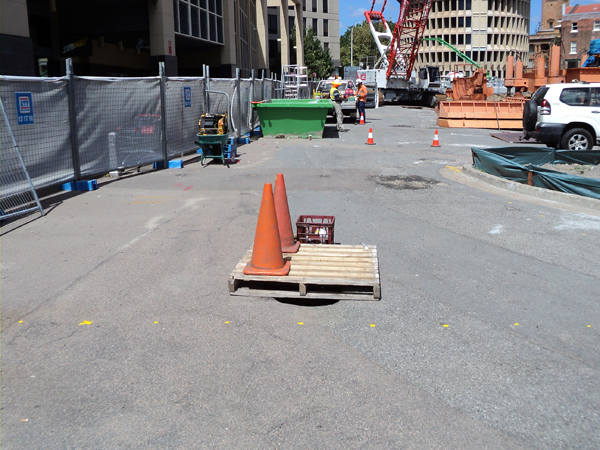

Figure 3: Site View.

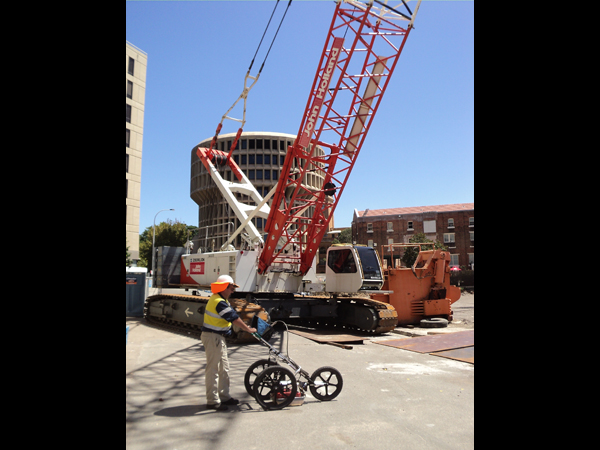

Figure 4: The Sir3000 and antenna were mounted onto a specially designed cart.
