Ground Penetrating Radar Investigation to Locate Underground Mine Workings, NSW (Q4 2012).

  • The Antenna was towed from the back of ute with the distance being recorded using a survey wheel.
  • The antenna rig being set up.
  • The antenna array completely set up.
  • A line being conducted using a ute.

GBG Australia undertook a Non-Destructive investigation to locate the underground workings at a mine located in NSW. The purpose for the survey was to supply accurate information of any underground mine workings that have possibly been missed by previous standard investigations..

Figure 1: The Antenna was towed from the back of ute with the distance being recorded using a survey wheel.

Figure 2: The antenna rig being set up.

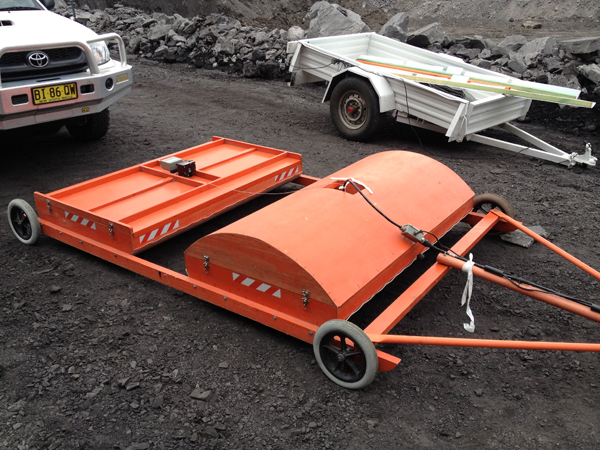

Figure 3: The antenna array completely set up.

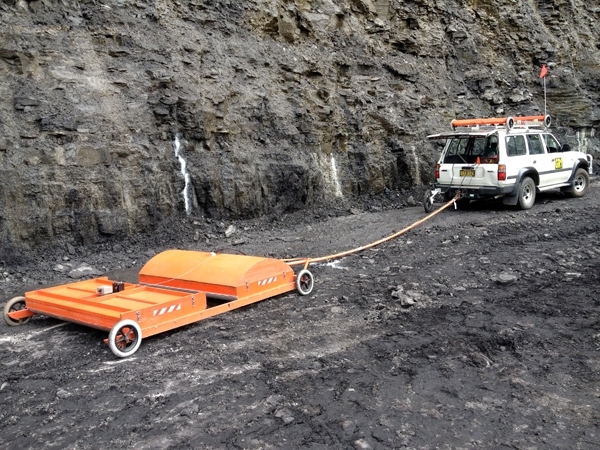

Figure 4: A line being conducted using a ute.
