Non Destructive Investigation As To Locate Unmarked Graves, Sydney, NSW (Q3 2015).

  • Site View.
  • Site View.
  • The Investigation being undertaken utilising the Sir-3000 and 400 MHz Antenna.

GBG Australia undertook a non destructive investigation to locate unmarked graves within a historic cemetery, Sydney, NSW. A number of Ground Penetrating Radar (GPR) surveys were conducted to gain the required information. The GPR system used was a GSSI Sir 3000 system attached to a number of antennas ranging from 200MHz to 400MHz.

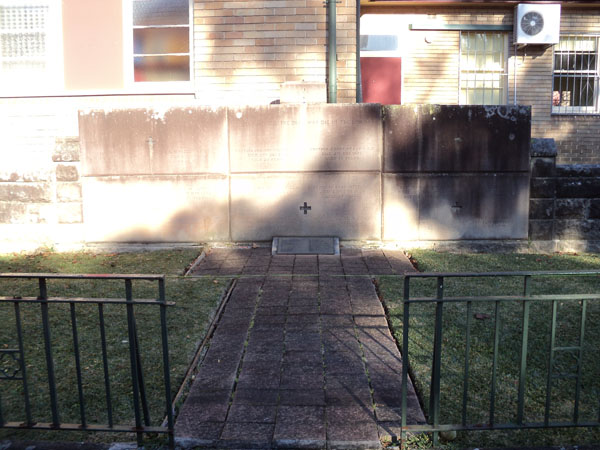

Figure 1: Site View.

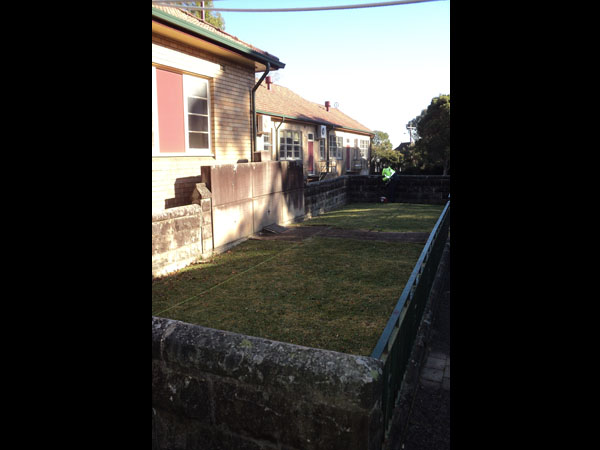

Figure 2: Site View.

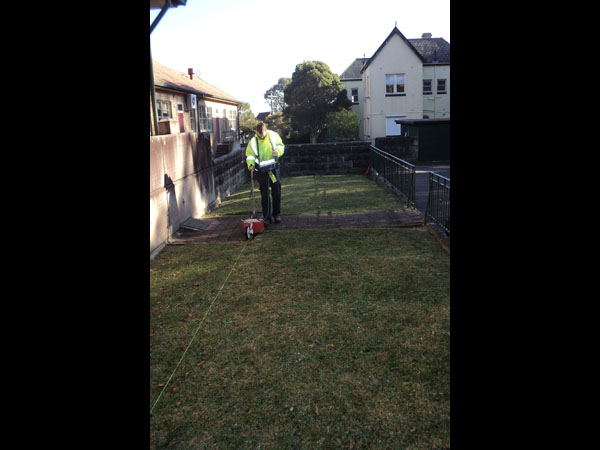

Figure 3: The Investigation being undertaken utilising the Sir-3000 and 400 MHz Antenna.
