Non-Destructive Investigation to Determine the Depth of Cover of Steel Reinforcement in Concrete Plinths, NSW (Q4 2013).

  • Site View.
  • Site View.
  • Site View.
  • Where possible the reinforcement layout was marked onsite.

GBG Australia undertook a Non-Destructive investigation to determine depth of cover of steel reinforcment, NSW. Surface Penetrating Radar was performed with regular line spacing around each plinth.

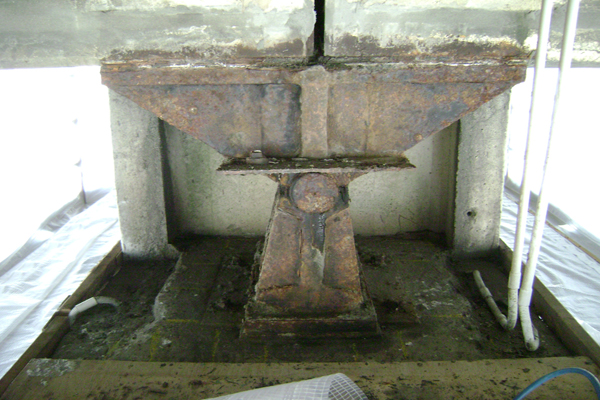

Figure 1: Site View.

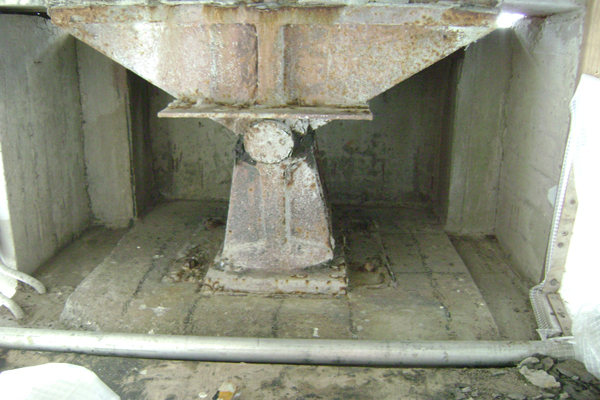

Figure 2: Site View.

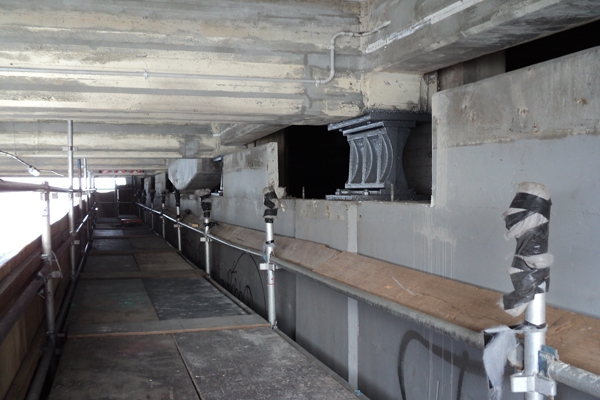

Figure 3: Site View.

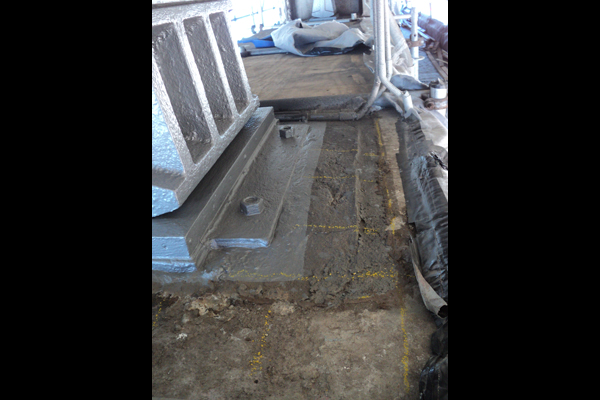

Figure 4: Where possible the reinforcement layout was marked onsite.
